4 In 1 Engine Fluid Glycol Antifreeze Freezing Point Car Battery Refractometer Antifreeze Tester
This device measures the proportion of antifreeze and freezing of glass cleaner, lead-acid battery electrolyte. IIt has a refractometer with automatic temperature compensation to give you the most accurate measurement in any type of environment temperature.

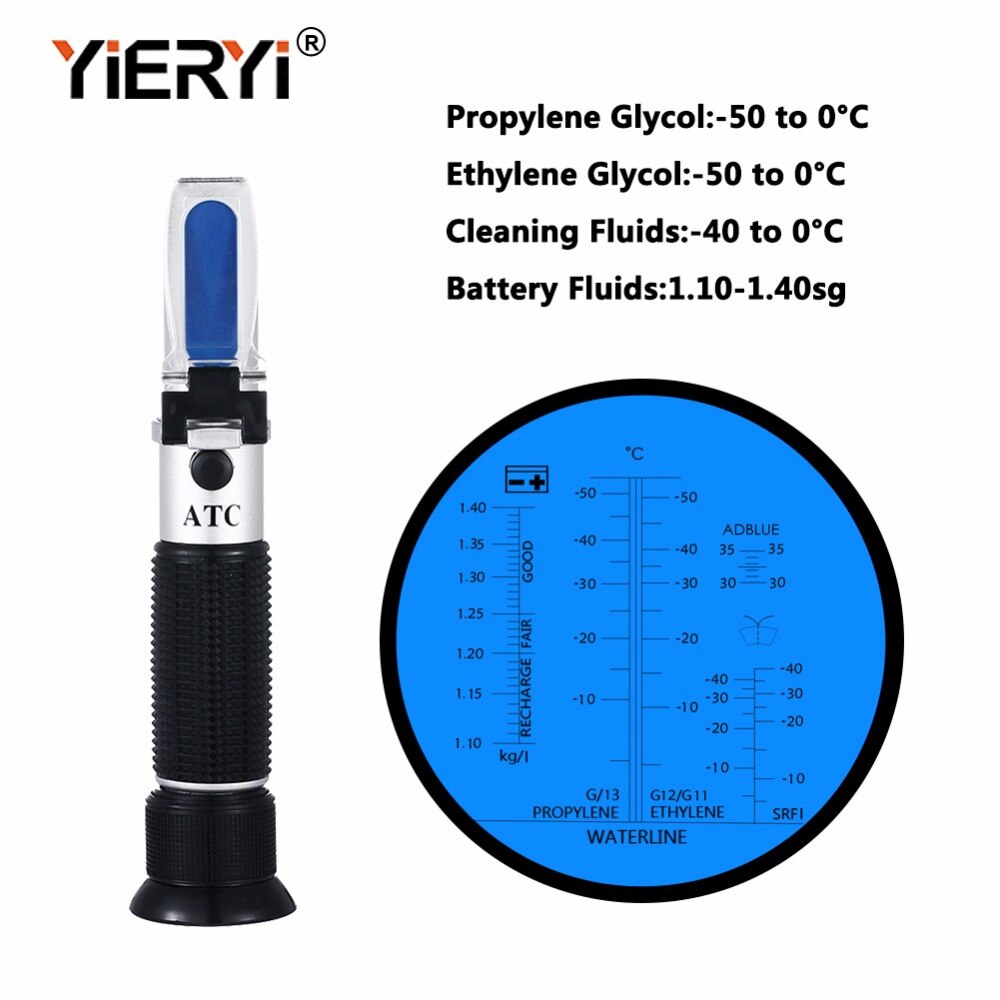

Ethylene Glycol: -50C-0C
Propylene Glycol: -50C-0C
Battery Fluids: 1.100-1.400sg
Ethylene Glycol :5°C
ATC(Automatic Temperature Compensation) Compensation Range: 10C-30C (50F-86F).
Size: 16cm x 8cm x 4cm.

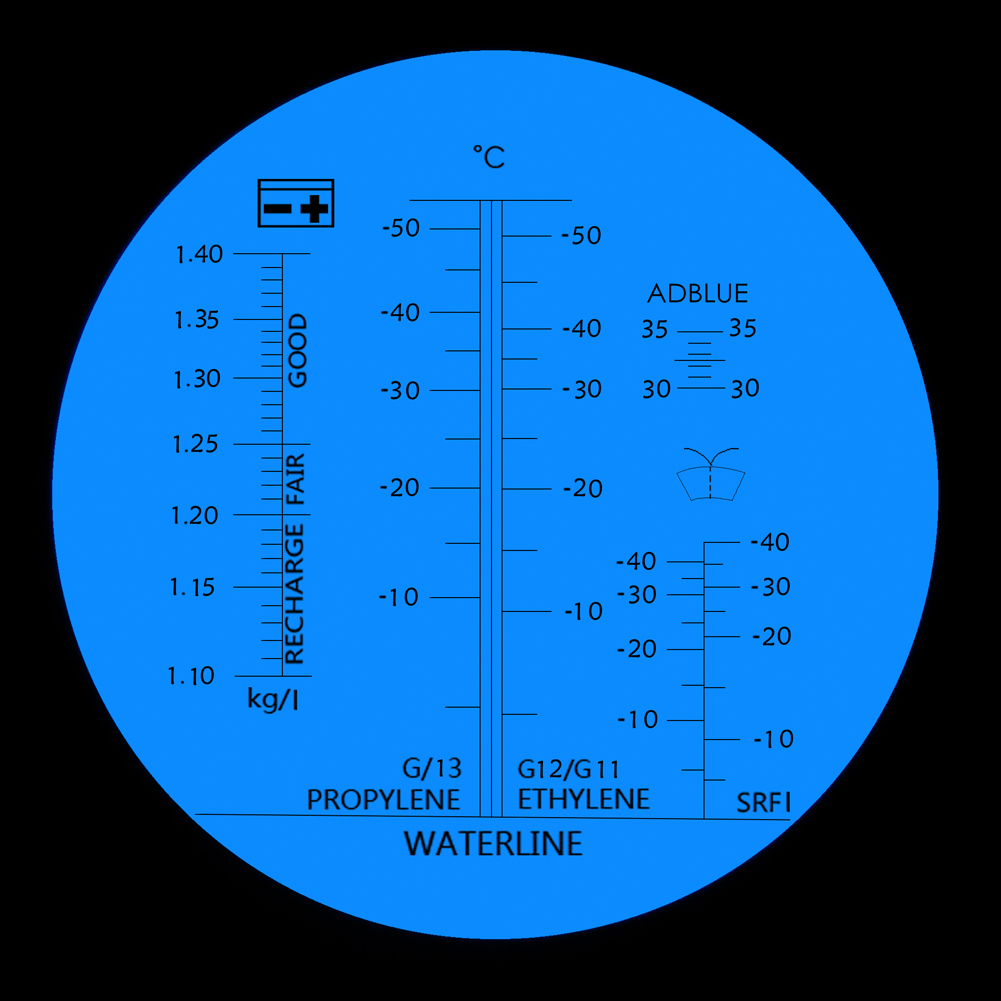

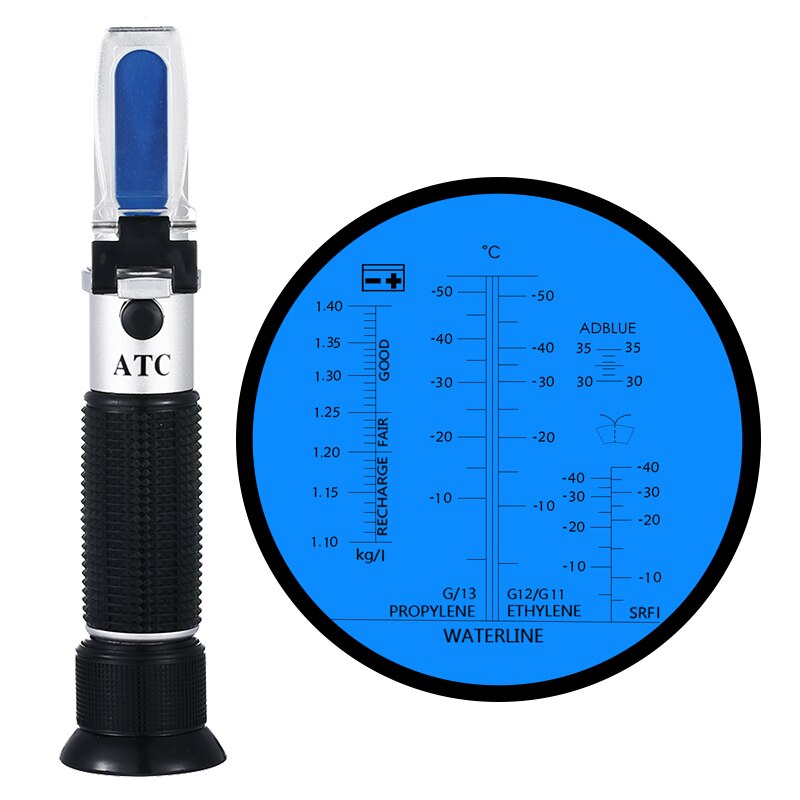

This optical refractometer is designed for measuring of following characteristics:
* Scale to determine the battery electrolyte condition
Scale range: 1.10~1.40kg/l
* Scale G13 – to determine the freezing point of propylene glycol-based antifreezes
This scale is suitable for measuring of freezing point of propylene glycol-based coolants and antifreezes. It can be also used for measuring of propylene glycol-based antifreezes in solar thermal collectors circuits or heating pumps and chillers.
Range of scale G13(Propylene Glycol): -50~0°C
* Scale G11/G12 – to determine the freezing point of ethylene glycol-based antifreezes
This scale is designed for measuring of the freezing point ethylene glycol-based coolants and antifreezes like G11 and G12 coolants.
Range of scale G11/G12(Ethylene Glycol): -50~0°C
* Scale to determine the freezing point of ethanol-based screen washes
Scale range: -40~0°C
* Scale SRF1 – Scale to determine the freezing point of isopropanol-based screen washes
Scale range: -40~0°C
* Scale Urea – for measuring of liquid additive AdBlue
The scale for liquid additive AdBlue used to treat exhaust gases to the level of emission standards Euro 4 and Euro 5.
Scale range: 30~50%

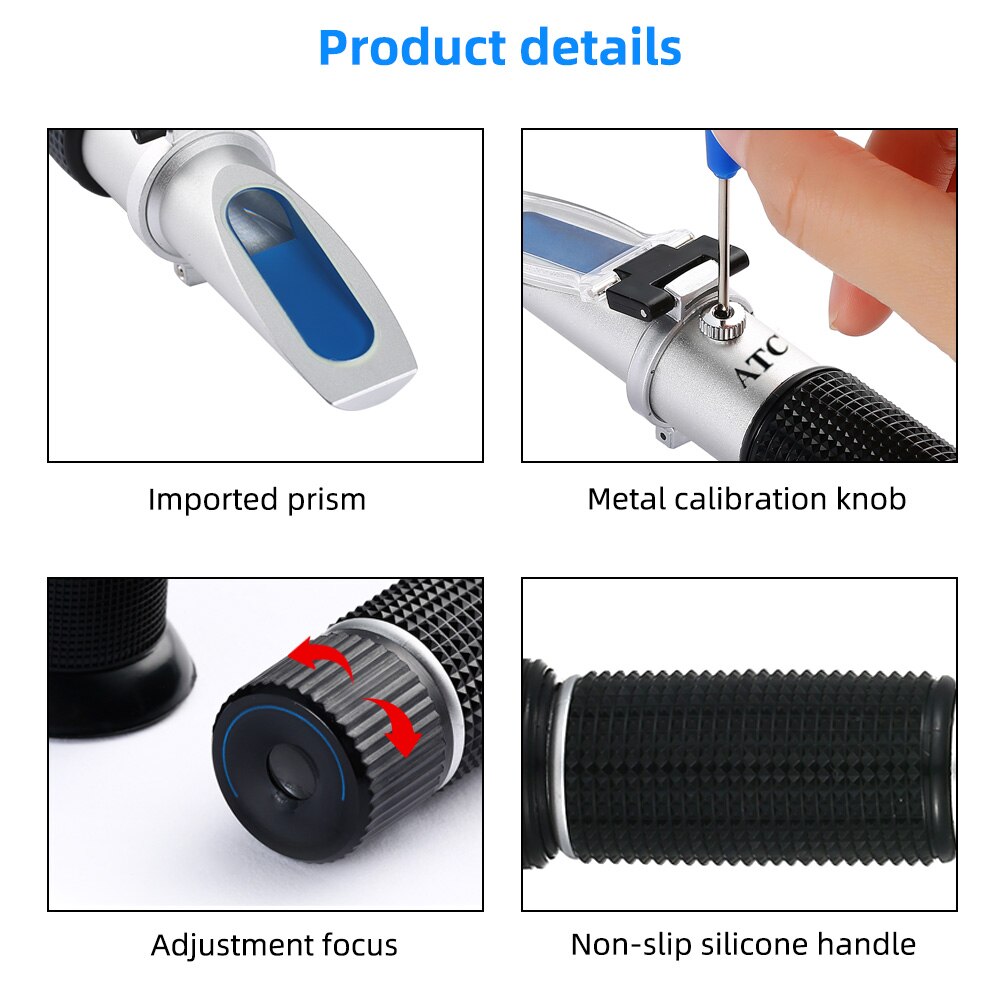

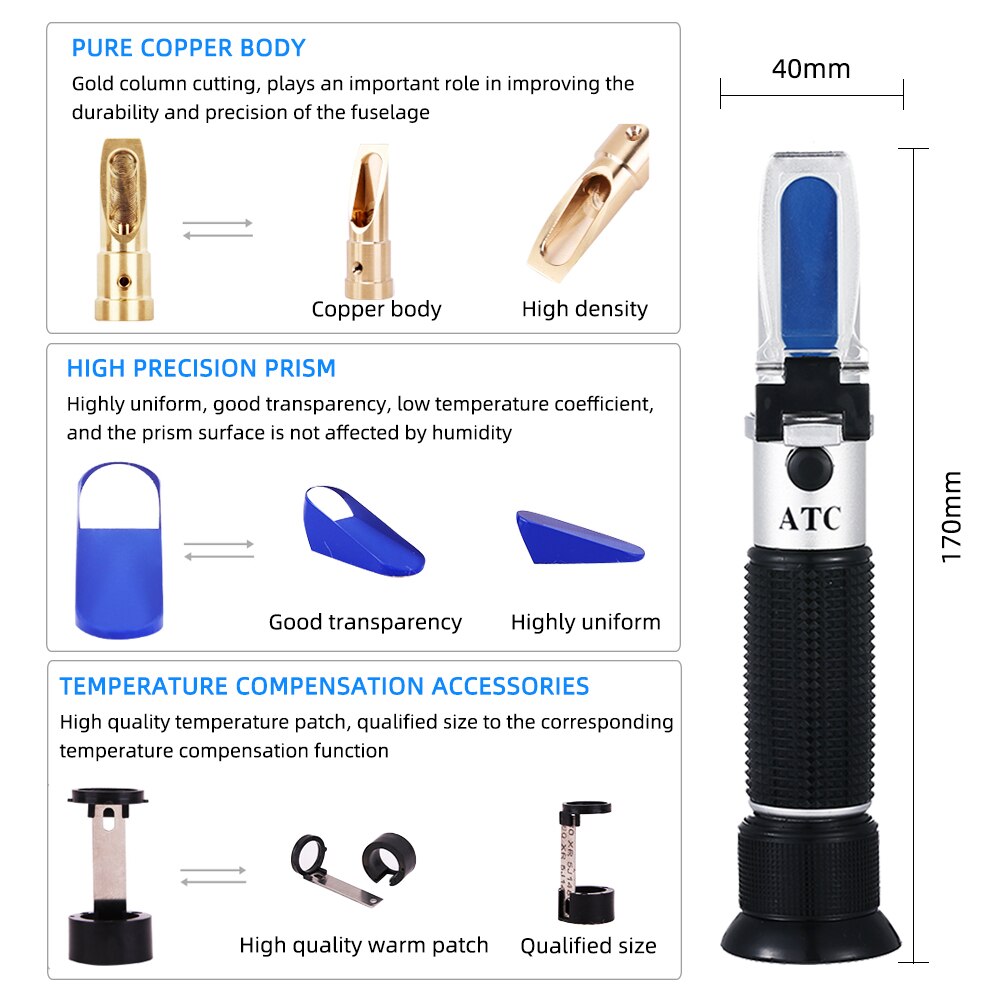

Process quality and structure:
1. Approved with strict quality and safety standards.
2. Heavy-duty aluminum structure, durable and durable.
3. Made of the highest and highest quality aluminum and rubber to make it light.
4. The pad is soft and comfortable non-slip rubber, the product is not easy to deform.
5. Easy to focus and calibrate, easy to use.

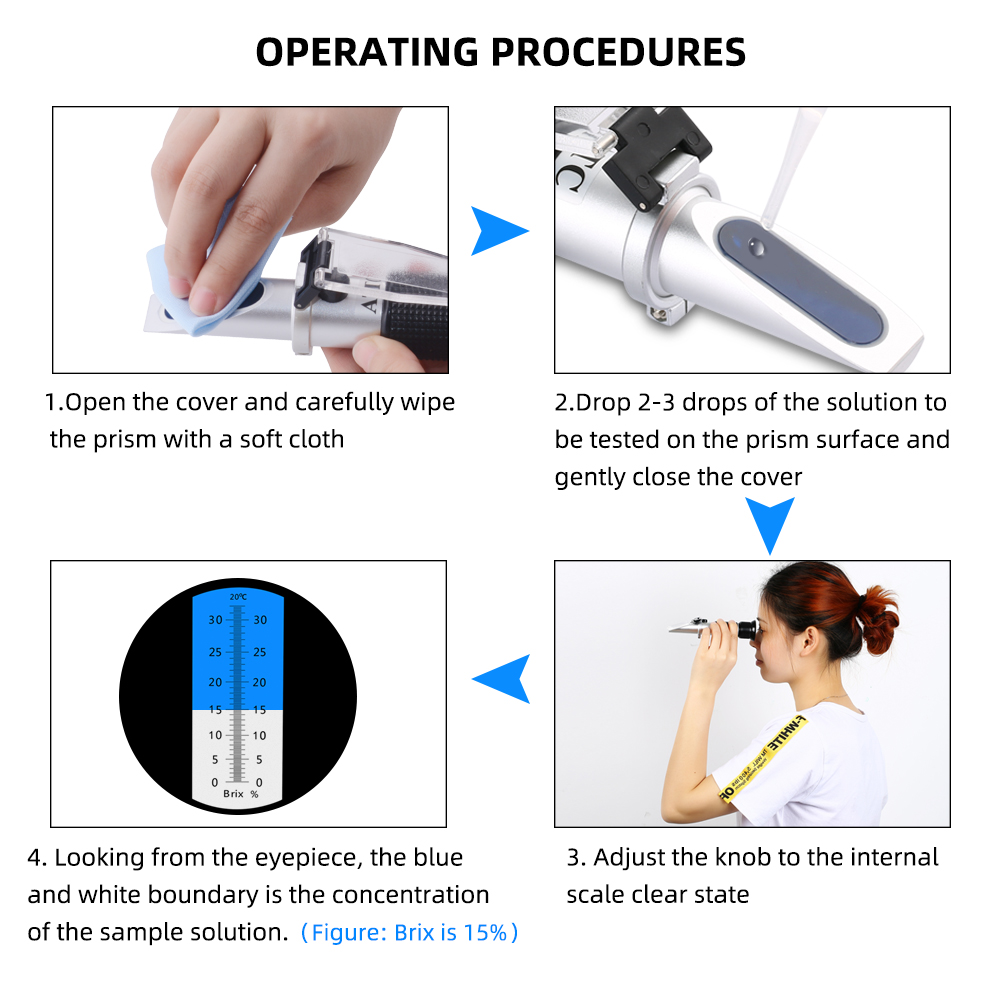

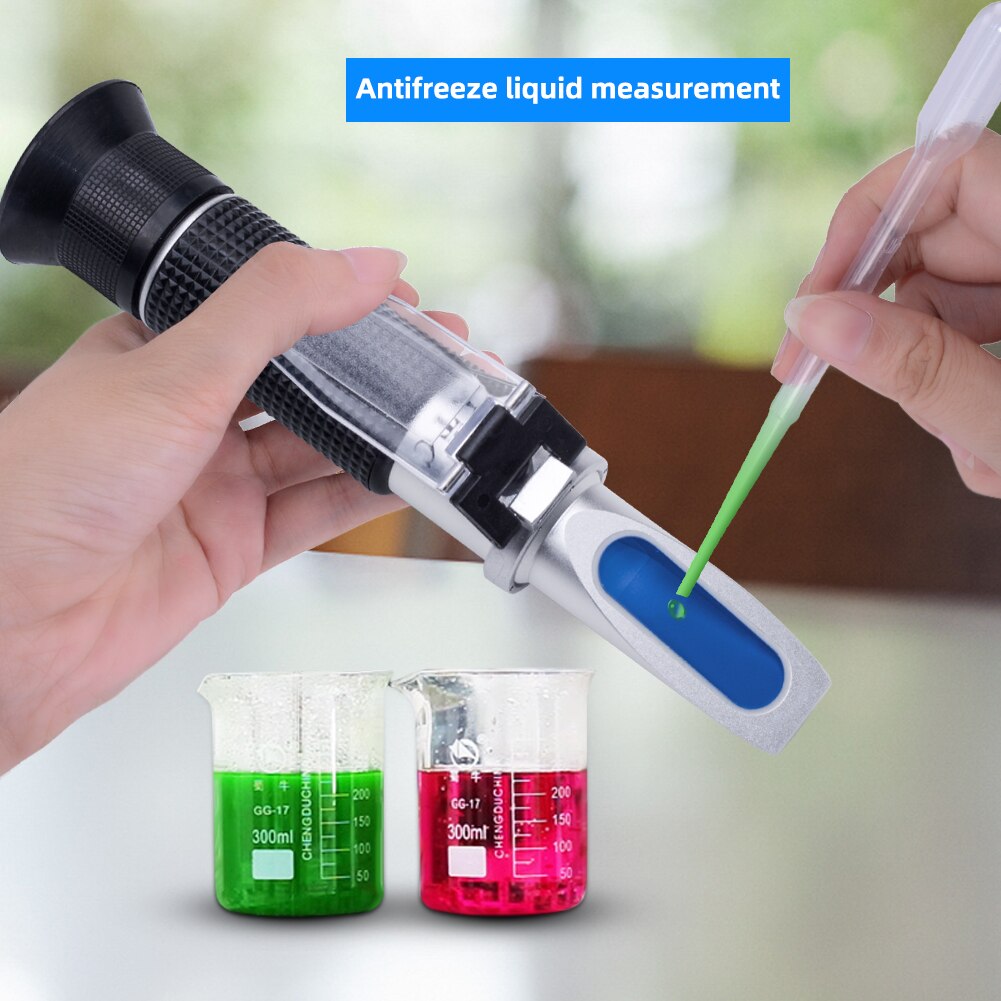

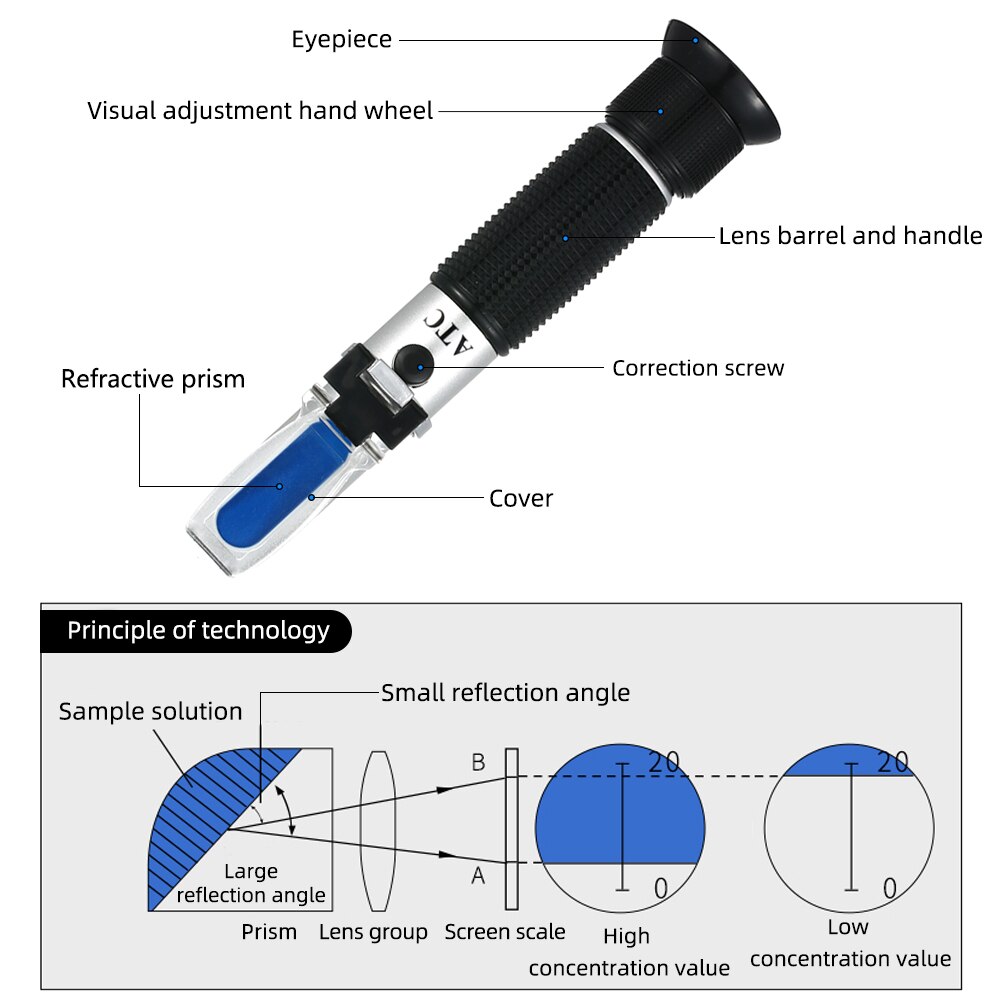

1: Place a few drops of the liquid on the main prism.
2 :Cover the prism,look through the eyepiece against the light.

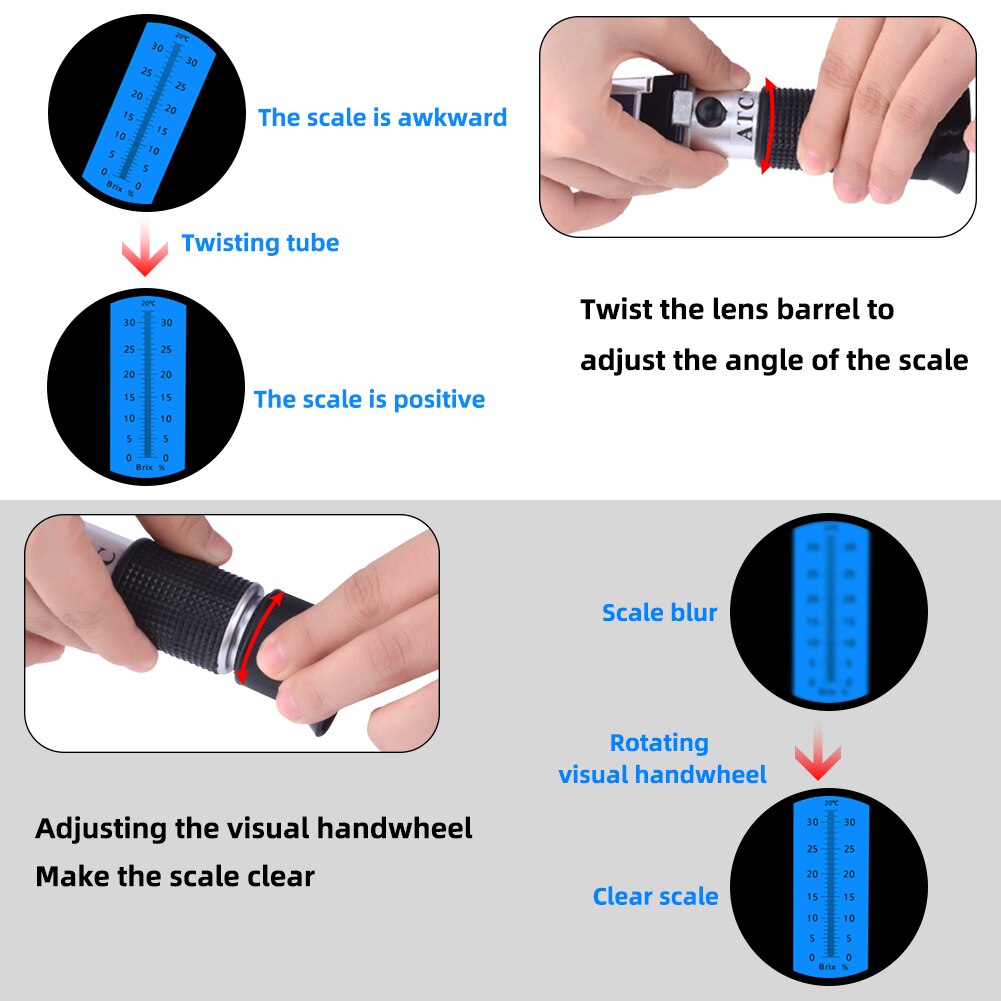

3 :Adjust the eyepiece to the clear state.
4 :You can read the result value on the scale.

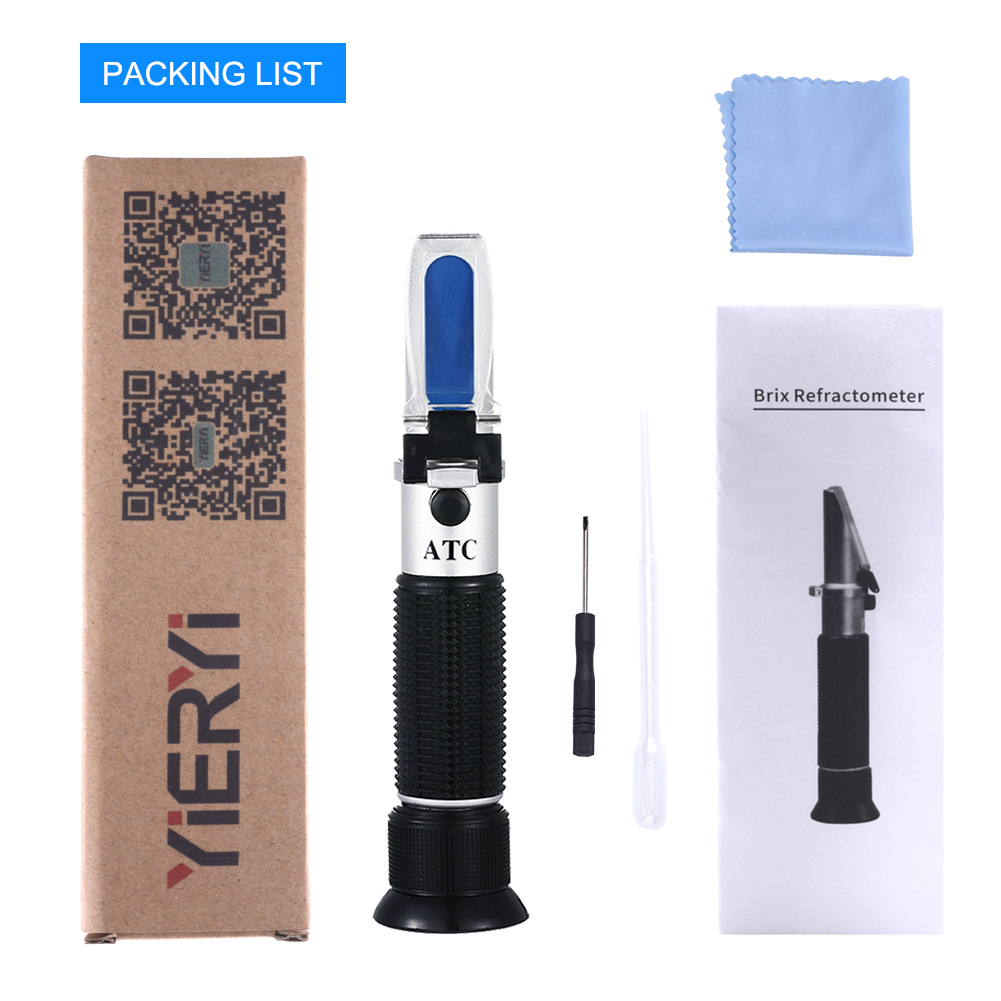

1 x Refractometer
1 x Pipette
1 x Screw driver
1 x Cleaning cloth
1 x Instruction manual Manual in English，Russian，Spanish，German，Japanese，Korean
1 x carton box
